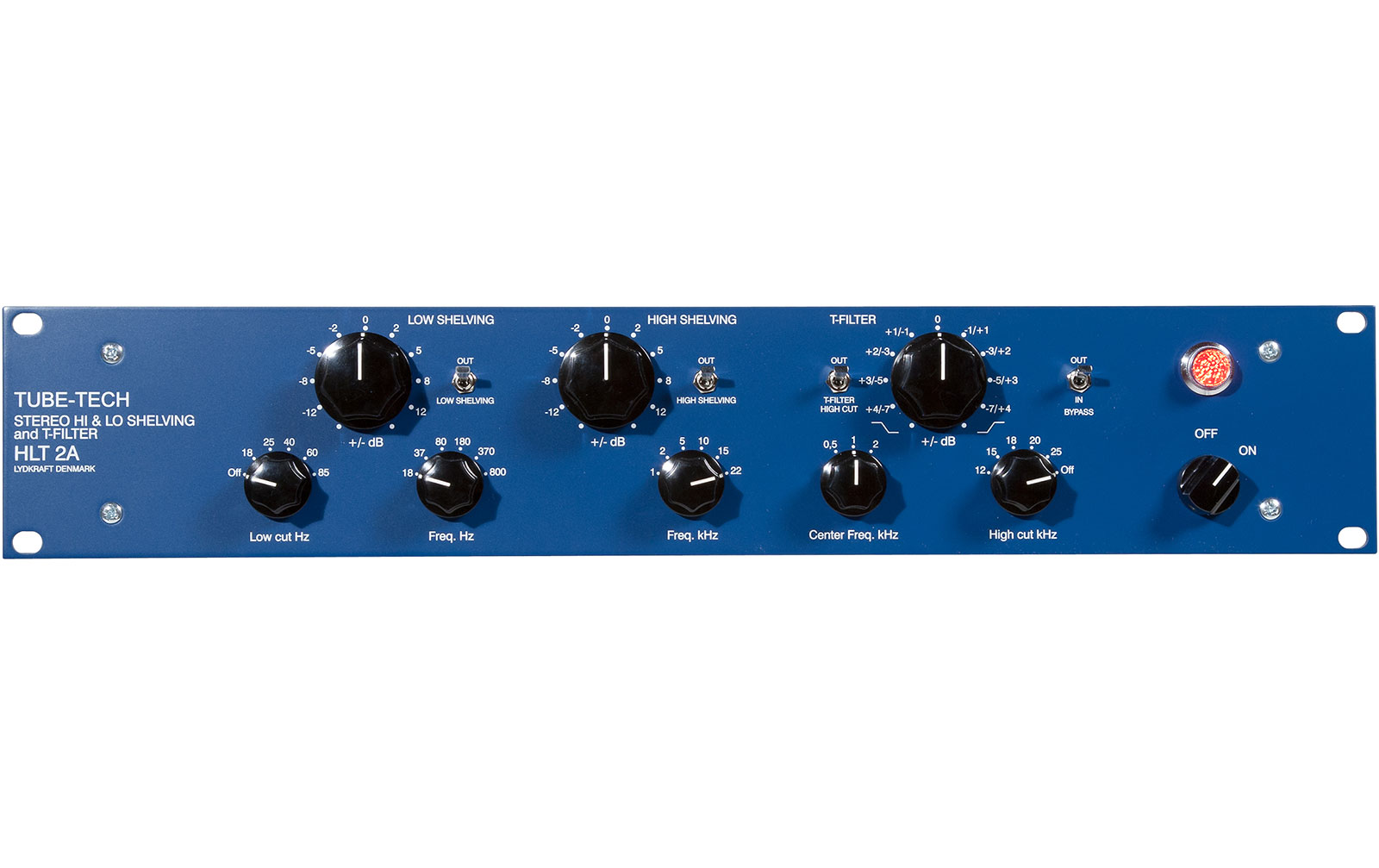

Tube-Tech HLT 2A - Stereo Hi & Lo Shelving and T-Filter
Tube-Tech
4.259,00 €
inkl. MwSt., zuzüglich Versandkosten
Versandfertig in ca. 8 Tagen, Versanddauer 1-2 Werktage
Produktinformationen
Features:
- TUBE-TECH HLT 2A is a stereo unit, featuring low and high cut filters,
- low and high shelving filters and a T-filter.
- The shelving filters are designed around a high gain tube amplifier.
- The T-filter is a passive filter placed between the shelving filters and the output amplifier. All three sections are supplied with a in/out switch. The low and high cut filters are also passive with a slope of 6dB/octave.
- A bypass switches the whole filter section out of the amplifier circuit, keeping the output stage in the circuit.
- The T-filter is like a seesaw. When the low end goes up, the high end goes down and visa versa.
- When the potentiometer is turned clockwise, the high frequencies are boosted and the low frequencies are attenuated.
- When the potentiometer is turned counter clockwise, the low frequencies are boosted and the high frequencies are attenuated
- The unit is all tube based except for the power supply.
- Input and output have fully floating transformers.
- All DC voltages are stabilized, except the anode voltage for the output stage.
Technische Daten:
- Tube based push-pull amplifier
- Freq. resp. @ -3 dB: 5 Hz - 55 kHz
- Low noise: < -80 dBU @ 0 dB gain
- CMRR: > 60 dB @ 10 kHz
- All-tube active/passive EQ
- FILTERS:
- Low cut: 18, 25, 40, 60, 85 Hz, 6db/octave
- Low shelving: 18, 37, 80, 180, 370, 800 Hz. Gain: +/-12dB
- High shelving: 1, 2, 5, 10, 15, 22 kHz Gain: +/-12dB
- T.-filter: 0,5, 1, 2kHz. Gain: +4/-7 dB
- High cut: 12, 15, 18, 20, 25 kHz, 6db/octave
- Tracking between channels: +/-0,3 dB
- Input impedance: >10 kO
- Output impedance: < 60O
- Conductive plastic potentiometers

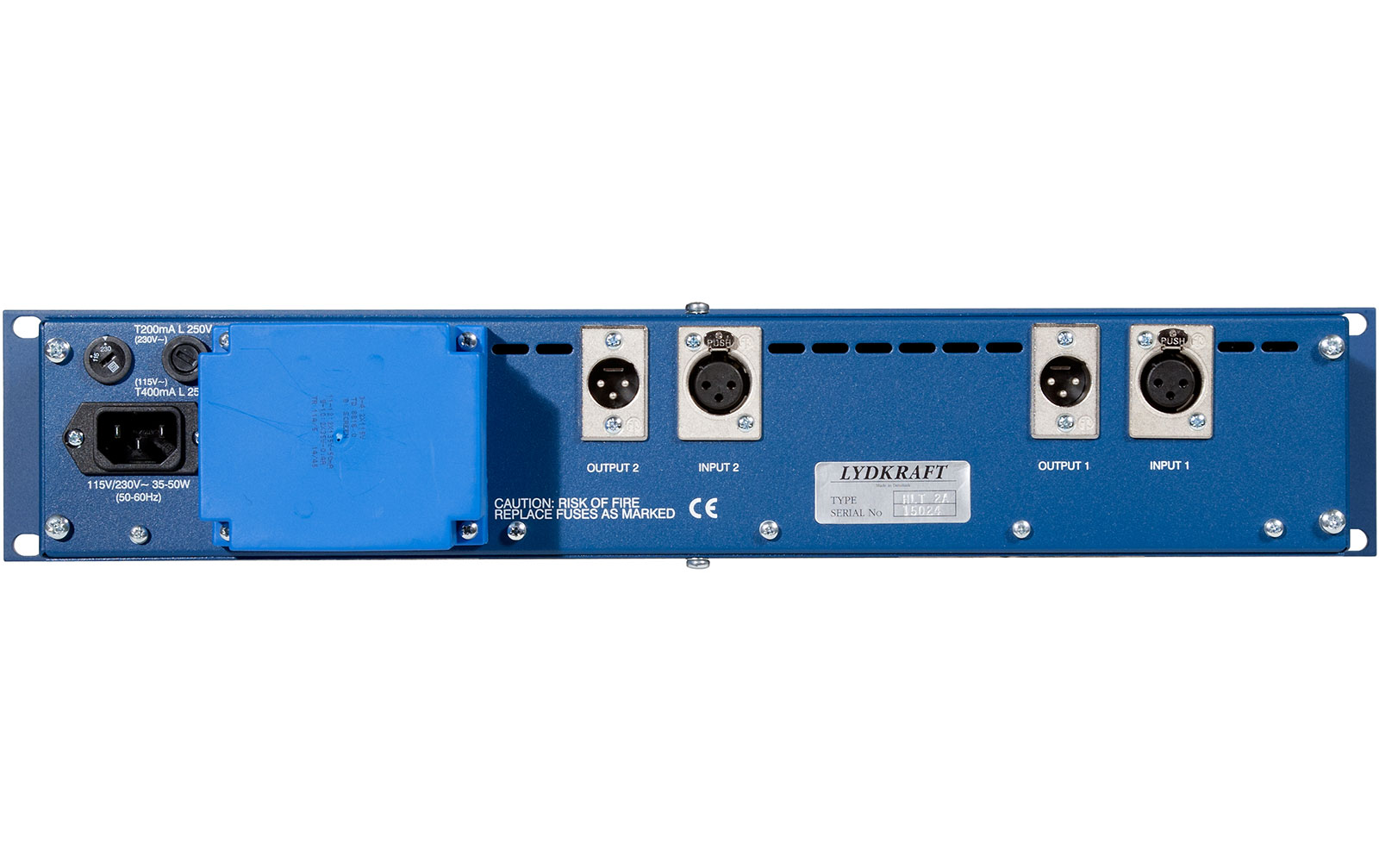

- In- and output are transformer balanced and fully floating
