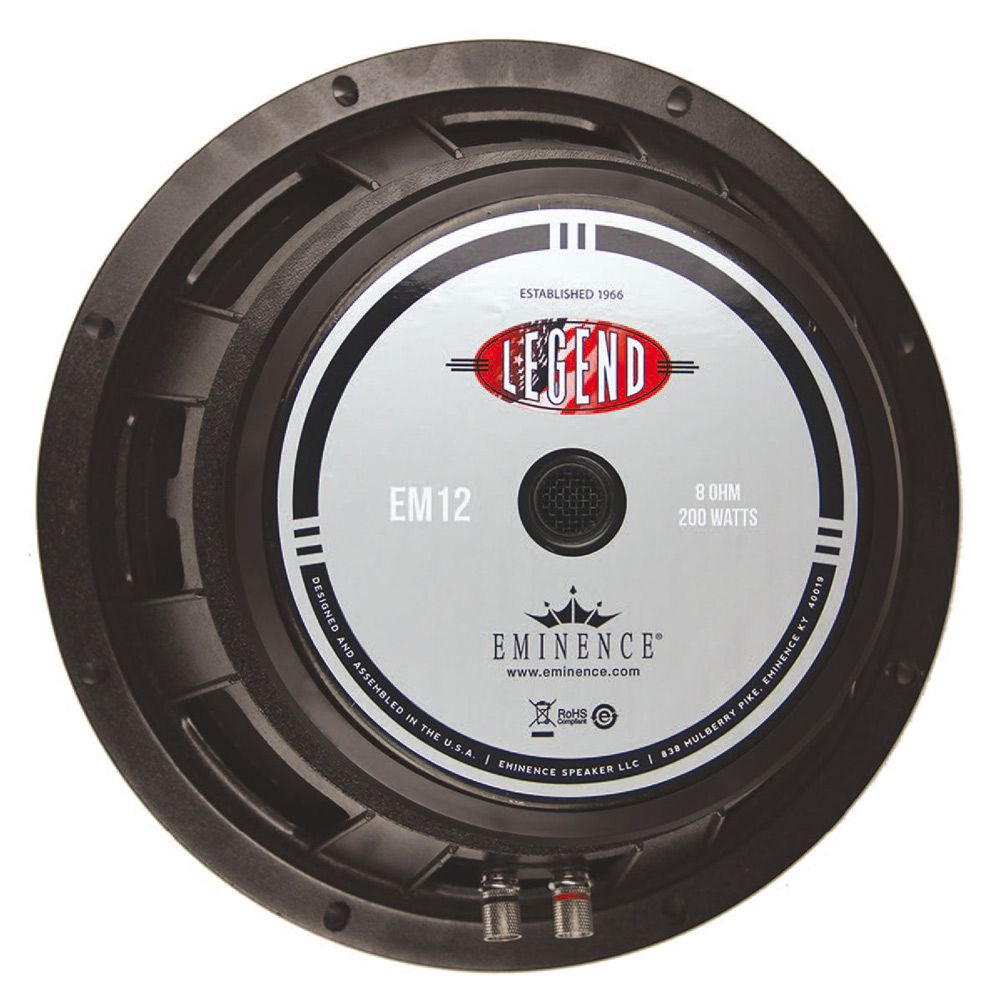

Eminence Legend EM 12 A
Eminence
Artikelnummer:
A137181
Produktinformationen
Kraftvoller 12" Gitarrenlautsprecher mit extrem cleanem Gesamtsound, mächtigen, vollen und knackigen Bässen und einem warmen, ausgeglichenen Mitten- und Höhenbereich. Durch den neutralen Klang kommen die Nuancen von Amp und Gitarre besonders zur Geltung.
Features:
- Nominal Basket Diameter 12", 305 mm
- Nominal Impedance 8 ohms
- Power Rating Watts 200 W
- Resonance 49 Hz
- Usable Frequency Range 60 Hz - 4.9 kHz
- Sensitivity 101.1
- Magnet Weight 80 oz.
- Gap Height 0.375", 9.5 mm
- Voice Coil Diameter 2.5", 64 mm
THIELE & Small Parameters
- Resonant Frequency (fs) 49 Hz
- DC Resistance (Re) 6.6
- Coil Inductance (Le) 0.49 mH
- Mechanical Q (Qms) 7.39
- Electromagnetic Q (Qes) 0.29
- Total Q (Qts) 0.28
- Compliance Equivalent Volume (Vas) 102.31 liters / 3.61 cu. ft.
- Peak Diaphragm Displacement Volume (Vd) 0 cc
- Mechanical Compliance of Suspension (Cms) 0.26 mm/N
- BL Product (BL) 16.9 T-M
- Diaphragm Mass inc. Airload (Mms) 40 grams
- Efficiency Bandwidth Product (EBP) 170
- Maximum Linear Excursion (Xmax) 1.3 mm
- Surface Area of Cone (Sd) 532.4 cm²
- Maximum Mechanical Limit (Xlim) N/A
MOUNTING Information
- Recommended Enclosure Volume Sealed Acceptable Vented Acceptable
- Overall Diameter 12.38", 314.5 mm
- Baffle Hole Diameter 11.07", 281.2 mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket fitted as standard
- Mounting Holes Diameter 0.26", 6.6 mm
- Mounting Holes B.C.D. 11.57", 293.9 mm
- Depth 5.38", 136.5 mm
MATERIALS of Construction
- Edge wound aluminum voice coil
- Polyimide former
- Ferrite magnet
- Vented core
- Die-cast aluminum basket
- Paper Cone
- Paper cloth edge
- Paper dust cap
