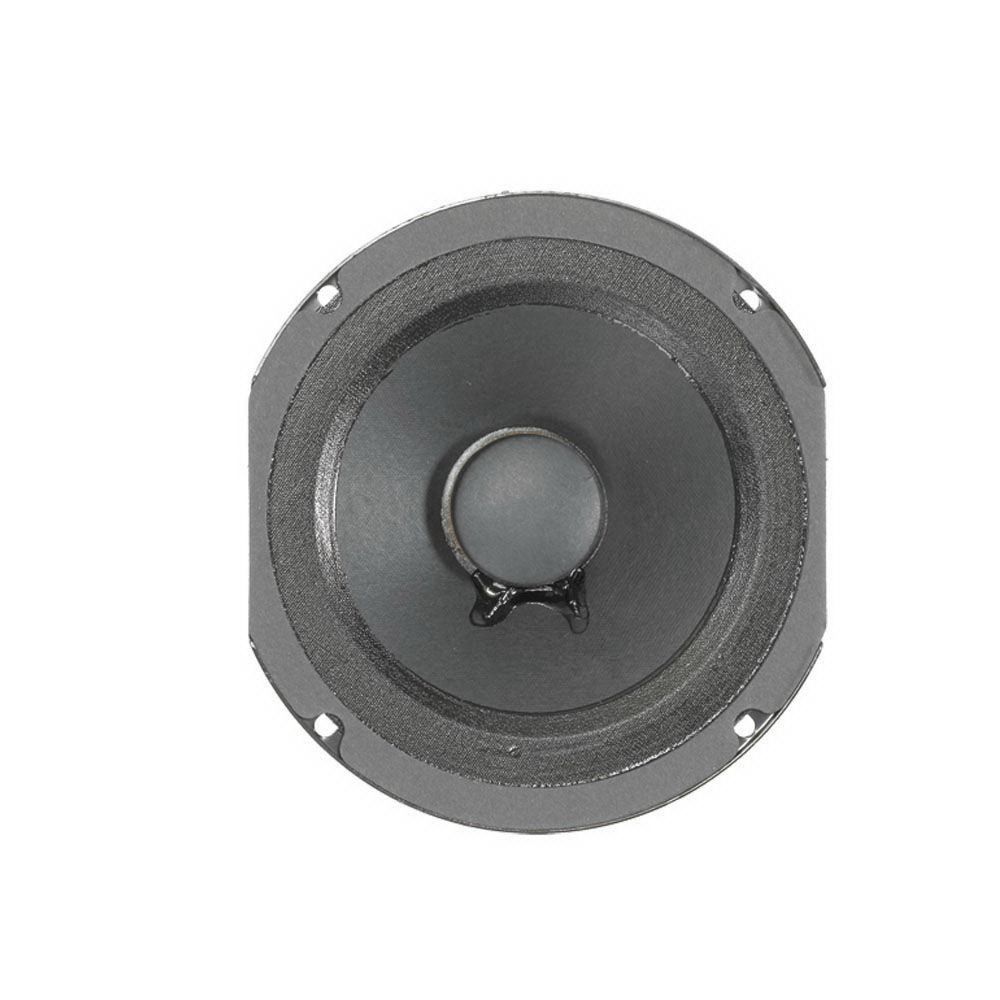

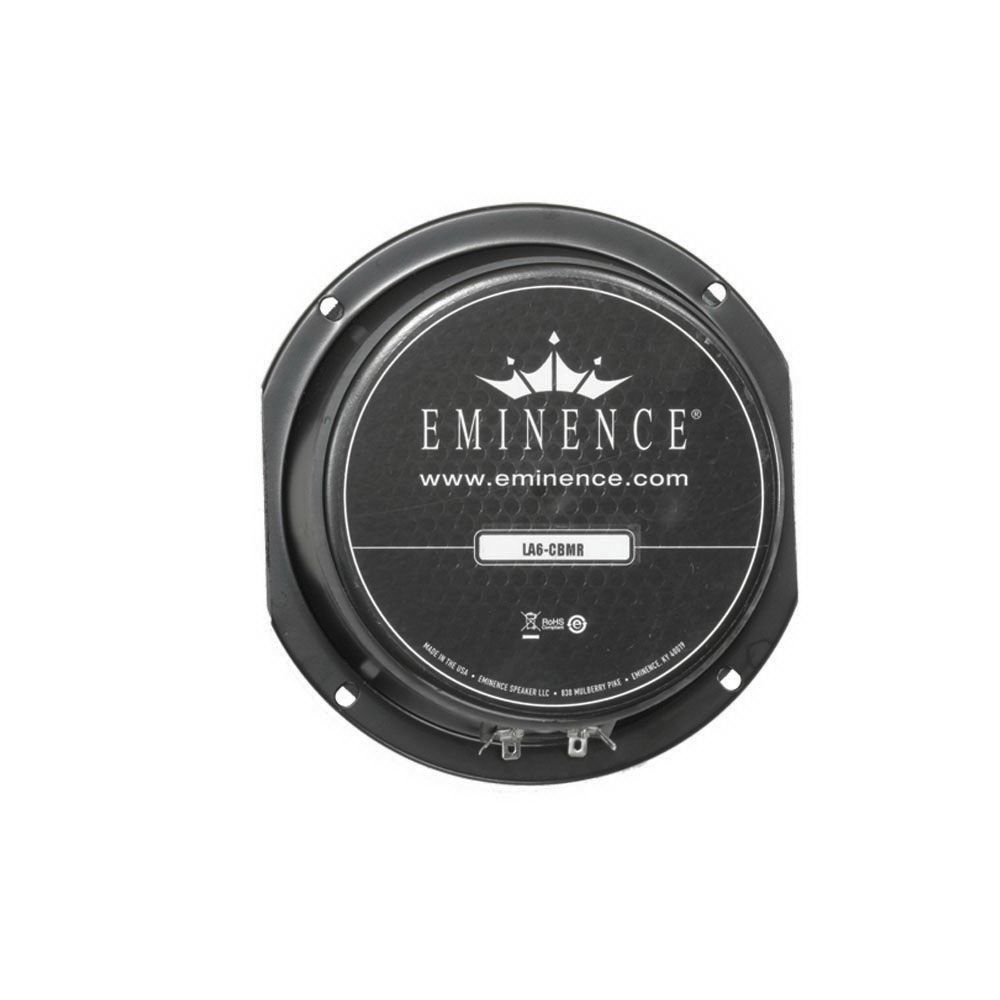

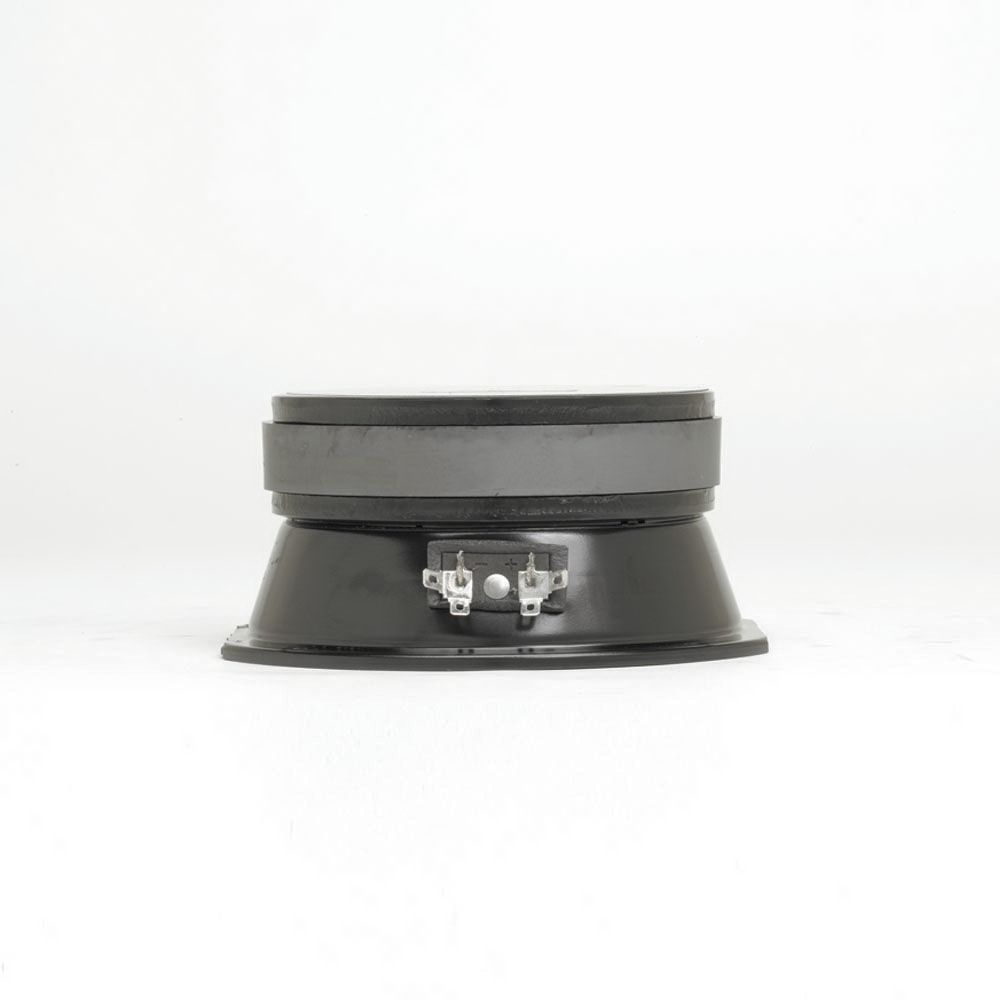

Eminence Line Array 6 CBMRA
Eminence
Artikelnummer:
A190733
Produktinformationen
Empfohlen als Mitteltöner (500 Hz 13 3 kHz) für professionelle Audioanwendungen. Geschlossener Lautsprecherkorb. Kurzer Korb für kompakte Bauweise, z.B. für Line-Arrays.
SPECIFICATION- Nominal Basket Diameter 6.5", 165 mm
- Nominal Impedance 8 ohms
- Power Rating Watts 150 W / Music Program 300 W
- Resonance 460 Hz
- Usable Frequency Range 500 Hz - 5.4 kHz
- Sensitivity 97.8
- Magnet Weight 38 oz.
- Gap Height 0.31", 7.92 mm
- Voice Coil Diameter 1.5", 38.1 mm
- Resonant Frequency (fs) 460 Hz
- DC Resistance (Re) 6.3
- Coil Inductance (Le) 0.33 mH
- Mechanical Q (Qms) 3.13
- Electromagnetic Q (Qes) 1.24
- Total Q (Qts) 0.89
- Compliance Equivalent Volume (Vas) 0.4 liters / 0.01 cu. ft.
- Peak Diaphragm Displacement Volume (Vd) 2.7 cc
- Mechanical Compliance of Suspension (Cms) 0.01 mm/N
- BL Product (BL) 11.1 T-M
- Diaphragm Mass inc. Airload (Mms) 9 grams
- Efficiency Bandwidth Product (EBP) 371
- Maximum Linear Excursion (Xmax) 0.2 mm
- Surface Area of Cone (Sd) 133.1 cm²
- Maximum Mechanical Limit (Xlim) 0.8 mm
- Recommended Enclosure Volume Sealed N/A Vented N/A
- Overall Diameter 6.59", 167 mm/Width
- Baffle Hole Diameter 5.65", 143.5 mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket as standard
- Mounting Holes Diameter 0.23", 5.7 mm
- Mounting Holes B.C.D. 6.06", 154 mm
- Depth 2.77", 70 mm
- Copper voice coil
- Polyimide former
- Ferrite magnet
- Vented and extended core
- Pressed steel basket with truncated sides
- Paper Cone
- Cloth cone edge
- Solid composition paper dust cap
Eminence Speaker, LLC. | P.O. Box 360 838 Mulberry Pike Eminence, KY 40019, USA | https://eminence.com/
