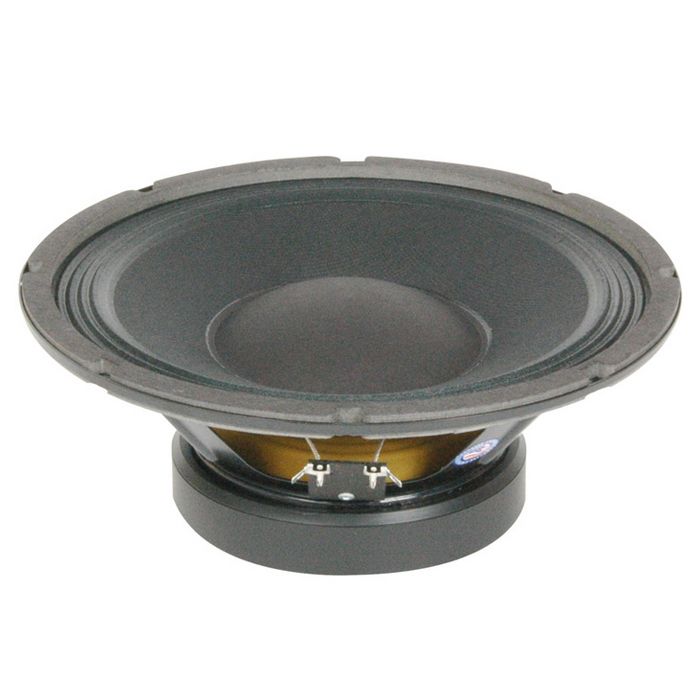

Eminence Beta 10 B
Eminence
Artikelnummer:
A190736
Produktinformationen
Empfohlen für professionelle Audio-Anwendungen, Bassgitarre sowie als Tief-/Mitteltöner oder für Bodenmonitore (geschlossene Gehäuse). Auch als Tief-/Mitteltöner oder Tieftöner in Bassreflex-Gehäusen geeignet.
SPECIFICATION- Nominal Basket Diameter 10", 254 mm
- Nominal Impedance 16 ohms
- Power Rating Watts 250 W / Music Program 500 W
- Resonance 53 Hz
- Usable Frequency Range 51 Hz - 3.8 kHz
- Sensitivity 97
- Magnet Weight 34 oz.
- Gap Height 0.312", 7.92 mm
- Voice Coil Diameter 2", 50.8 mm
- Resonant Frequency (fs) 53 Hz
- DC Resistance (Re) 5.75
- Coil Inductance (Le) 0.67 mH
- Mechanical Q (Qms) 8.14
- Electromagnetic Q (Qes) 0.52
- Total Q (Qts) 0.49
- Compliance Equivalent Volume (Vas) 60.1 liters / 2.1 cu. ft.
- Peak Diaphragm Displacement Volume (Vd) 102 cc
- Mechanical Compliance of Suspension (Cms) 0.36 mm/N
- BL Product (BL) 9.6 T-M
- Diaphragm Mass inc. Airload (Mms) 25 grams
- Efficiency Bandwidth Product (EBP) 103
- Maximum Linear Excursion (Xmax) 3.0 mm
- Surface Area of Cone (Sd) 344.9 cm²
- Maximum Mechanical Limit (Xlim) 8.6 mm
- Recommended Enclosure Volume Sealed 8.5-14.2 liters/0.3-0.5 cu.ft. Vented 19.8-70.8 liters/0.7-2.5 cu.ft.
- Overall Diameter 10.11", 256.8 mm
- Baffle Hole Diameter 9.13", 231.8 mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket fitted as standard
- Mounting Holes Diameter 0.23", 5.7 mm
- Mounting Holes B.C.D. 9.6", 243.8 mm
- Depth 3.98", 101 mm
- Aluminum voice coil
- Polyimide former
- Ferrite magnet
- Vented core
- Pressed steel basket
- Paper Cone
- Cloth cone edge
- Solid composition paper dust cap
